Industrial Connect Streamline Networks High Quality Secure Network
3 Years
| Ask Lasest Price | |
| Brand Name : | QUIC |
| Model Number : | M21AX |
| Certification : | CCC、Rohs |
| Price : | USD 500（Negotiable） |
| Payment Terms : | D/A, D/P, T/T, L/C, Western Union, MoneyGram |
| Supply Ability : | 10000 Piece/Pieces per Month |
| Delivery Time : | 5-8 work days |

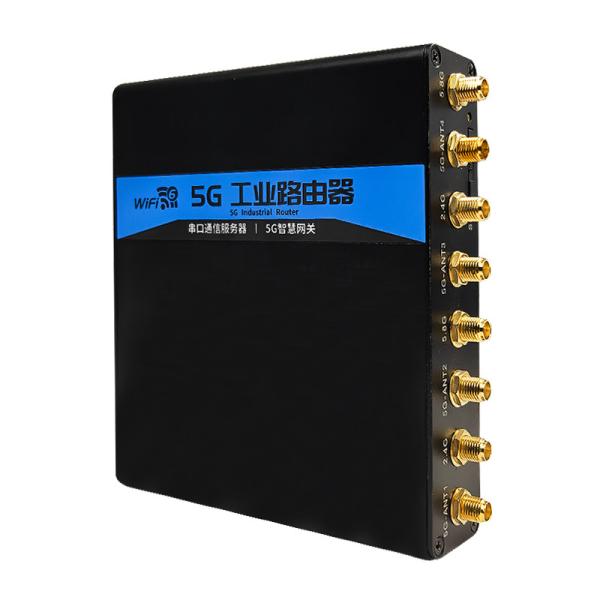

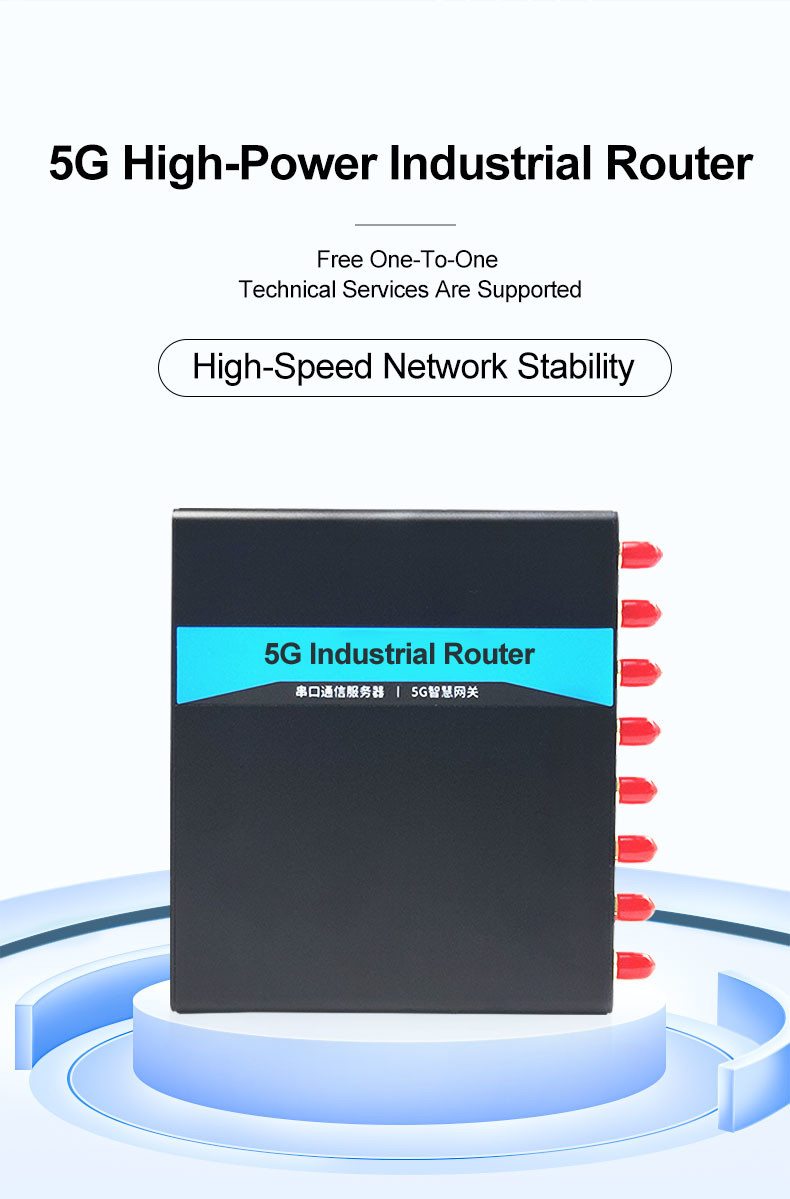

High performance Industrial 5G Wireless Router with SIM Card Slot for Sale
Mainly in areas with harsher environments, we provide various network support for everyone. Now it has been widely used in M2M industries in the IoT industry chain, such as smart grid, intelligent transportation, finance, supply chain automation, industrial automation, intelligent buildings, fire protection, public safety, environmental protection, meteorology, digital medical care, telemetry, agriculture , forestry, water affairs, coal mine, petrochemical and other fields.
| Product interface | |
| WAN port | 1 pc WAN port |
| LAN port | 3 pcs LAN ports (10M/100M/1000M adaptive MDI/MDIX port) |
| SIM card interface | 1 pc (drawer card holder, support 1.8V/3V SIM/UIM card) |
| USB interface | not support |
| Reset | 1 pc (reset button) |
Antenna interface | 4 pcs (4G/5G antenna, impedance 50 ohms, SMA female socket) |
| 2 pcs (2.4G WIFI antenna, impedance 50 ohms, SMA inner pin interface) | |
| 2 pcs (5.8G WIFI antenna, impedance 50 ohms, SMA inner pin interface) | |
| Power interface | 1 pc (DC 5.5* 2.1/2.5 seat) |
| Communication Interface | 1 pc (7-pin 3.81mm pitch industrial terminal block) |
| Console port | 1 pc built-in |
| Indicator light | 4 pcs (1 5 lights, 1 SYS light, 2 WiFi lights) |
| WIFI performance | |
| Protocol standard | IEEE 802.11b/g/n/ac/wifi6 ax |
| Antenna support | 5.8GHz:2X2/80Mhz 2.4GHz:2*2/40Mhz |
| WIFI frequency band | 2.412GHz-2.47GHz and 5.15GHz-5.85GHz dual frequency synchronization |
| WIFI rate | Onboard wifi 2.4GHz up to 574Mbps Onboard wifi 5.8GHz up to 1200Mbps |
| Output Power | Single-channel dual 2.4G WIFI, the maximum output power is about 0.8Watt Single-channel dual 5.8GWIFI, the maximum output power is about 1.2Watts |
| Receive sensitivity | Under the condition of @802.11AX, 2.4G receiving gain is 14DBi Under the condition of @80.11AX, 5.8G receive gain 13DBi |
| Transmission distance | 100M (the actual transmission distance depends on the environment) |
| Safety features | Open system, shared key, WPA/WPA2 authentication, WEP/TKIP/AES encryption |
| Operating mode | AP, Client working mode |
| WIFI software function | Modify SSID, channel switching, support AP mode (relay mode) |
About us
Established in 2014, iyunlink is a professional manufacturer
specialized in WiFi networking.Our main products are WiFi Router 4G
Router Bonding Router... Our Professional R&D team,
well-equipped facilities and excellent quality control throughout
all stages of production enable us to guarantee total customer
satisfaction. With over 10 years’ experience in networking
products,we have obtained ISO9001, High-tech Enterprise
certificates and our products comply with
CE,FCC,RoHS,REACH,Telec,GS certificate...
Services
Our service:
---Your inquiry will be replied in 24hours
---Well-trained and experienced staffs to answer all your inquires
in fluent English
---OEM&ODM, for any of your customized products we can help you
to design and put into product
---Monthly output over 6,000,000 pcs
---All our products with 12months guarantee
About sample:
---Sample is available.
---Sample lead time: 2-3 working days, 4-5 days with customized
logo
---More details, please contact with us.
Payment methods:
---T/T, Western Union, LC.
---30% deposit, balanced before shipment.
Shipping & Trade terms:
---By sea, air, or UPS, FEDEX, EMS, DHL, etc.
---Payment:T/T, Western Union, LC.
---Delivered time: 2-3 business days for sample, 20-25 days for
mass order.
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2014,sell to North
America(1.00%),South America(1.00%),Eastern Europe(1.00%),Southeast
Asia(1.00%),Africa(1.00%),Oceania(1.00%),Mid East(1.00%),Eastern
Asia(1.00%),Western Europe(1.00%),Central America(1.00%),Northern
Europe(1.00%),Southern Europe(1.00%),South Asia(1.00%),Domestic
Market(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
routers,Ethernet switches,Embedded Industrial Computer
4. why should you buy from us not from other suppliers?
We have 10 years of design and development experience, mainly
designing 4G industrial routers, 5g industrial routers, wireless
wifi6 routers, switches, AI smart gateways
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: null;
Language Spoken:null
|
|
